Dynamik
Smart connected signage

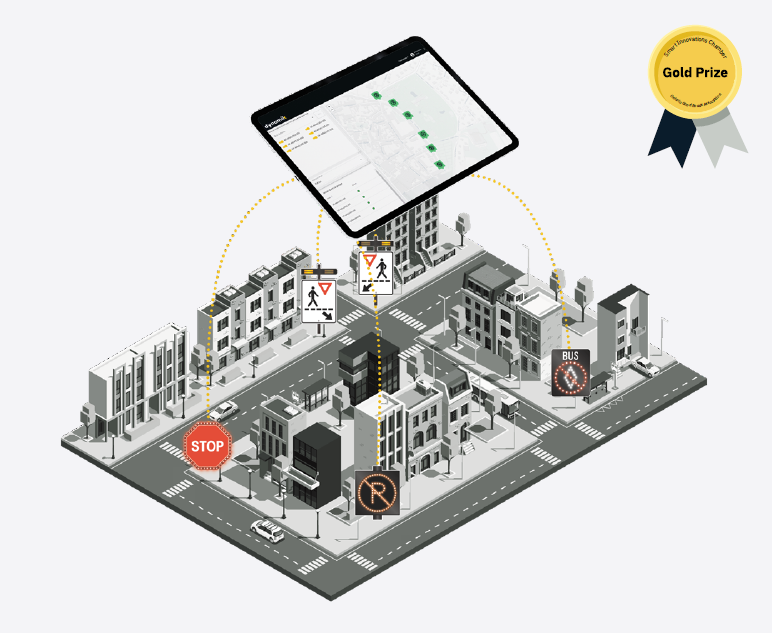

Smart control boxes enabling remote management of dynamic signaling infrastructure. Dynamik MC technology combines the Internet of Things (IoT), artificial intelligence (AI), long-range wireless communication, and cloud-based operating applications to control road safety and urban mobility infrastructure in real-time.
Allows signs to be activated and deactivated in a fraction of a second, remotely and in real-time, or according to a scheduled program.
Provides detailed telemetry of connected objects, including alarms in case of detected failure.
Email alarms in case of system malfunction (e.g., low battery).
System performance statistics:
System
› Offered for solar or electrical power
› Includes control board, photocell, 1 battery, and connectors
› Operating temperature: -40 to +85°C (-40 to +185°F)
Enclosure
› Material: Aluminum (outer casing), ABS (electronic casing)
› Finish: Black polyester powder-coated
› Lockable with stainless steel cam lock
› Impact resistant
› Corrosion resistant
› Watertight (IP65 electronic casing)
Dimensions
› Height: 381.4 mm (473 mm with antenna)
› Width: 244 mm
› Depth: 140 mm
Weight
› With battery: 23.4 lbs (10.6 kg)
› Without battery: 9.4 lbs (4.3 kg)
Output Power
› 1 AGM battery
› 12 V (DC) / 5 A / 60 W
› 20 Ah
Control Board (Electronic Enclosure)
› Battery charge management
› 12 Vdc nominal voltage regulator
› Bluetooth communication module
› LTE-M communication module
› Schedule management
› Flash sequence modulation system
Antenna
› 4G: 698–960 MHz, 1710–2690 MHz
› Wi-Fi: 2400–2500 MHz
› GNSS: 1556–1581 MHz
Certifications
Electronic Enclosure
› IC and FCC certified
› Nema 4X and IP 65 compliant
Bluetooth
› FCC ID: XPYNINAB1
› IC ID: 8595A-NINAB1
The specifications for the system, enclosure, dimensions, control board, antenna, electronic enclosure, and Bluetooth are similar to the 20Ah enclosure as described above. Here are the differences.
Weight
› With battery: 41.1 lbs (18.6 kg)
› Without battery: 13.1 lbs (5.9 kg)
Output Power
› 2 AGM batteries
› 12 V (DC) / 5 A / 60 W
› 40 Ah
The specifications for the system, enclosure, dimensions, and output power are similar to the 20Ah and 40Ah enclosures as described above. Here are the differences.
Weight
› With battery: 22.9 lbs (10.4 kg)
› Without battery: 8.9 lbs (4 kg)
Control Board (Electronic Enclosure)
› Battery charge management
› 12 Vdc nominal voltage regulator
› Flash sequence modulation system
Certifications
Electronic Enclosure
› Nema 4X and IP 65 compliant
Allows you to activate and deactivate panels in a fraction of a second.
Offers detailed telemetry of connected objects, including alarms in case of detected failure.
On system performance:
Supports the deployment of solar-powered infrastructure.
A range of features for more efficient municipal management!
Dynamik won the Gold Award from the Good Roads Association’s Smart Innovations Chamber
Remote, real-time monitoring
Email alerts in the event of system malfunctions (e.g., low battery)
Statistics available at any time
Real-time responsiveness, proactive maintenance, sustainable and autonomous solution, centralized management via a cloud interface.
Dynamik technology combines the Internet of Things (IoT), artificial intelligence (AI), long-range wireless communication, and cloud-based operating applications to control road safety and urban mobility infrastructure in real time.
Real-time control: Allows panels to be activated and deactivated in a fraction of a second.
Statistics and alarms: Provides detailed telemetry of connected objects, including alarms in case of detected failure.
Low consumption: Supports the deployment of solar-powered infrastructures.
Kali-Park parking lights, FRCR Kali-Flash pedestrian crosswalks, luminous flashing lights, LED flashing stop sign
Control: Remote and real-time or scheduled programming.
Alarms: By email in case of system malfunction (e.g. low battery).
System performance statistics: infrastructure usage, solar panel charge, battery voltage, temperature, ambient light.
